Modify Lambda Backup Configuration

Objective: Update the configuration for the Lambda function BackupDynamoDBAndSendEmail (created in section 3.3, integrated with the POST /backup endpoint, section 4.6) to ensure efficient operation when backing up data from the DynamoDB table studentData to the S3 Bucket student-backup-20250706 (section 6.5) and sending notification emails via Amazon SES. The configuration includes Memory, Ephemeral Storage, Execution Role, and Environment Variables to optimize performance and integrate with the serverless system.

Overview of Lambda Backup

  • Role of Lambda BackupDynamoDBAndSendEmail:
    • Handles the POST /backup endpoint in the student API (stage prod, section 4.8), reads data from DynamoDB studentData, saves a JSON file to S3 student-backup-20250706, and sends a notification email via SES.
    • Updated to support triggering from both API Gateway and Amazon EventBridge (section 8.2) for manual backup (via web interface) and automatic backup (via schedule).
  • System Integration:
    • The web interface (distributed via CloudFront StudentWebsiteDistribution, sections 7.1–7.3) from S3 Bucket student-management-website-2025 (sections 6.1–6.4) calls the student API with Invoke URL (e.g., https://abc123.execute-api.us-east-1.amazonaws.com/prod) and StudentApiKey (section 4.2).
    • Functions:
      • POST /students: Save records to DynamoDB studentData and send email via SES.
      • GET /students: Display data in a table.
      • POST /backup: Create a JSON file in student-backup-20250706 and send a notification email.
    • CORS is configured (section 4.7) to support requests from the CloudFront domain (e.g., https://d12345678.cloudfront.net).
    • IAM role DynamoDBBackupRole (section 6.5) grants access to DynamoDB, S3, and SES.

Prerequisites

You need to complete the following:

  • Section 2.4: Create S3 Bucket student-backup-20250706.
  • Section 3.3: Create Lambda function BackupDynamoDBAndSendEmail with role DynamoDBBackupRole.
  • Sections 4.1–4.9: Create and configure the student API, including StudentApiKey, StudentUsagePlan, GET /students, POST /students, POST /backup methods, enable CORS, and deploy the prod stage.
  • Section 5: Build the web interface with index.html, styles.css, scripts.js.
  • Sections 6.1–6.5: Create and configure S3 Buckets student-management-website-2025 and student-backup-20250706.
  • Sections 7.1–7.3: Create and configure CloudFront StudentWebsiteDistribution.
    Ensure your AWS account has permissions for lambda:UpdateFunctionConfiguration, lambda:GetFunction, s3:PutObject, dynamodb:Scan, ses:SendEmail, and the AWS region is us-east-1.

Detailed Actions

  1. Access AWS Management Console and Lambda

    • Log in to AWS Management Console.
    • In the search bar, enter Lambda and select AWS Lambda.
    • Verify AWS region: us-east-1 to synchronize with DynamoDB studentData, S3 (student-management-website-2025, student-backup-20250706), API Gateway, SES, and CloudFront.

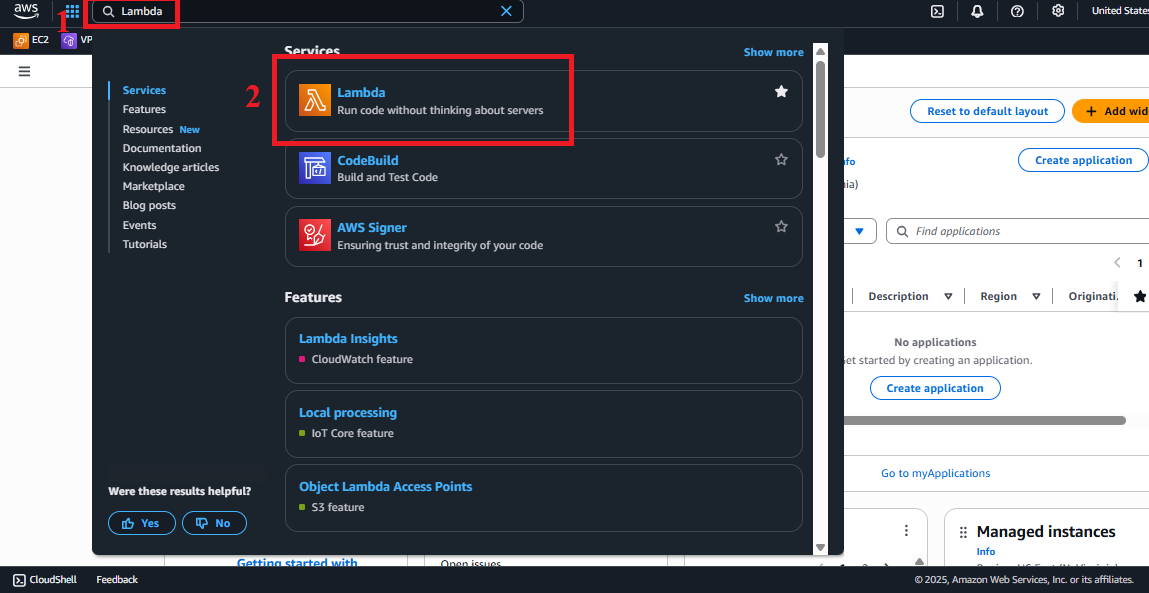

      AWS Console interface with Lambda search bar. Figure 1: AWS Console interface with Lambda search bar.

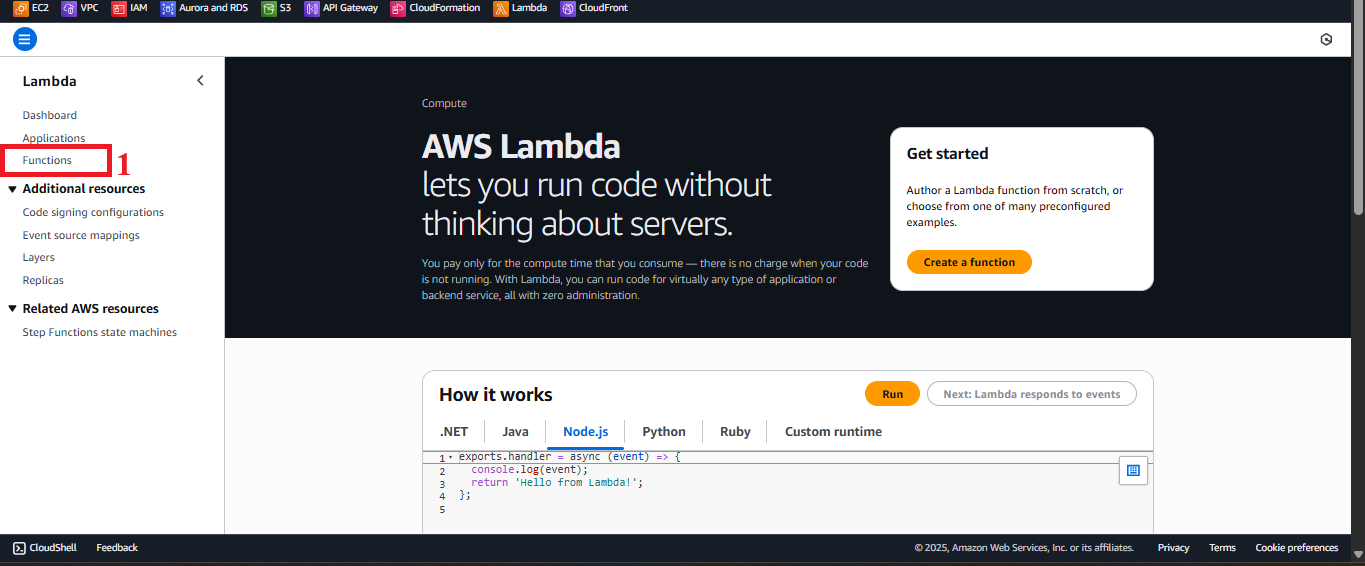

  2. Select Functions List

    • In Lambda > Functions, view the list of Lambda functions.
    • Check: Ensure the function BackupDynamoDBAndSendEmail (section 3.3) appears.
    • Troubleshooting: If not found, verify the function name and lambda:GetFunction permission:
      {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "lambda:GetFunction",
            "Resource": "arn:aws:lambda:us-east-1:<AWS_ACCOUNT_ID>:function:BackupDynamoDBAndSendEmail"
        }
    ]
}
      Replace <AWS_ACCOUNT_ID> with your AWS account ID.

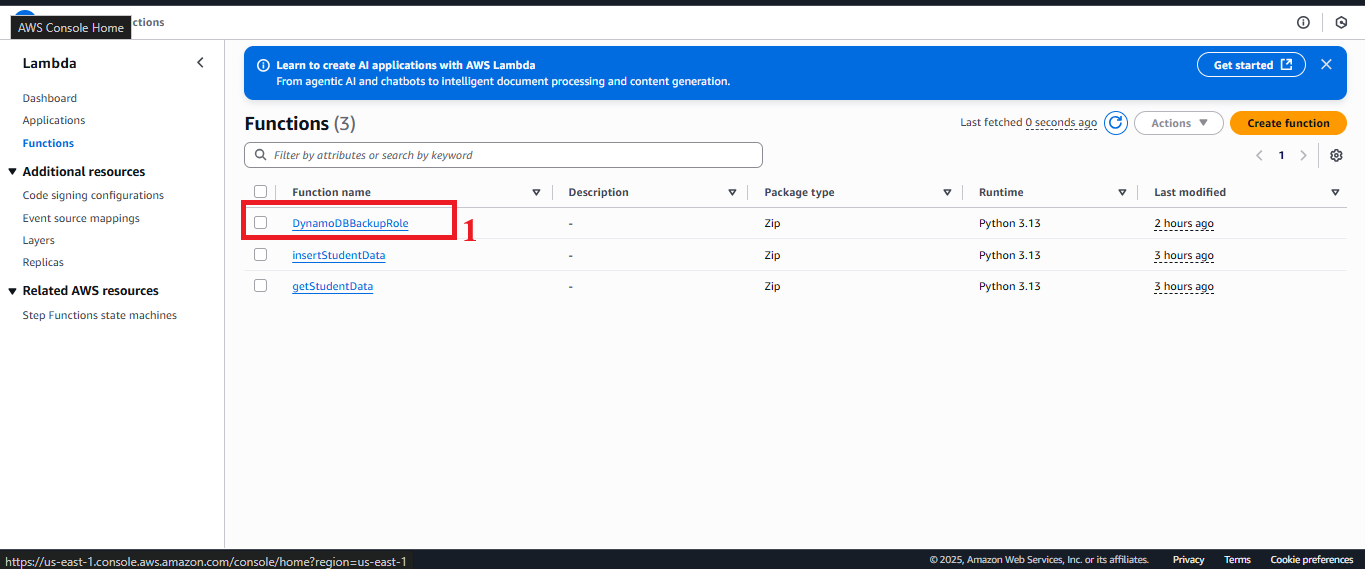

      Lambda Functions list. Figure 2: Lambda Functions list.

  3. Select the Backup Lambda Function

    • Click on BackupDynamoDBAndSendEmail to enter the details page.
    • Identification: The function is linked to the POST /backup endpoint (section 4.6) and the DynamoDBBackupRole (section 6.5).
      Lambda function details interface. Figure 3: Lambda function details interface.

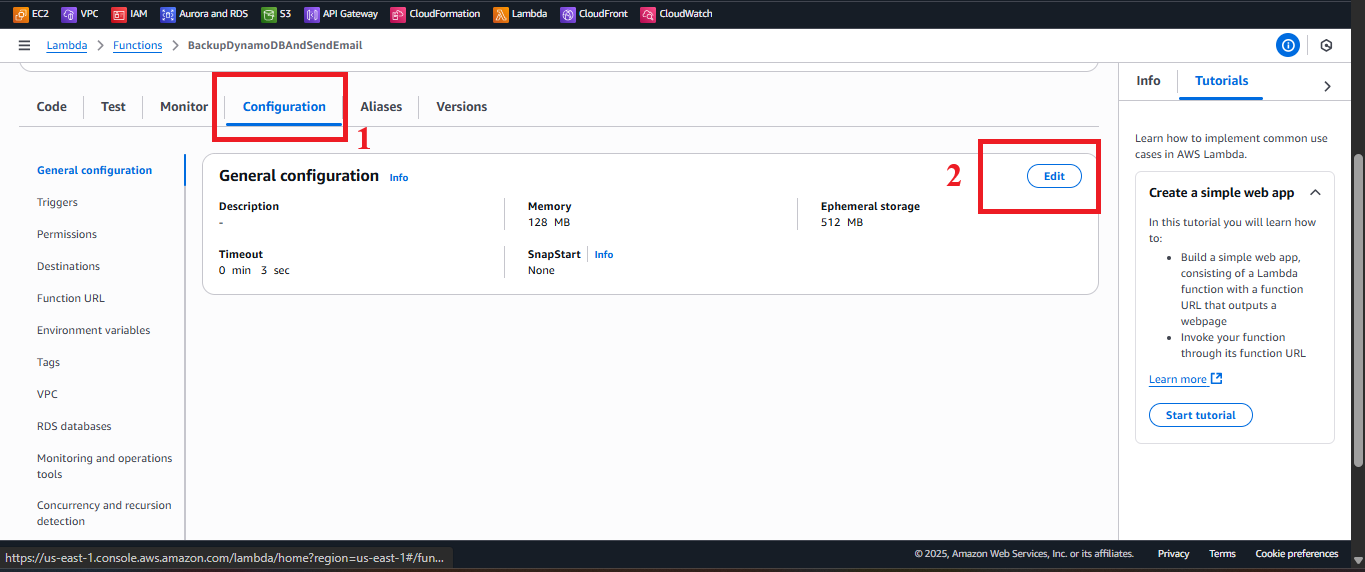

  4. Access the Configuration Tab

    • In the details page, select the Configuration tab (next to Code, Test).

  5. Update General Configuration

    • In Configuration > General configuration, click Edit.
    • Configure:
      • Memory: 128 MB (sufficient for reading DynamoDB, writing to S3, sending SES email; increase if needed but consider cost).
      • Ephemeral Storage: 512 MB (default, enough for temporary data).
      • Execution Role: Select Use an existing role, choose DynamoDBBackupRole.
        • Verify permissions:
          {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "dynamodb:Scan",
                "s3:PutObject",
                "ses:SendEmail"
            ],
            "Resource": [
                "arn:aws:dynamodb:us-east-1:<AWS_ACCOUNT_ID>:table/studentData",
                "arn:aws:s3:::student-backup-20250706/*",
                "arn:aws:ses:us-east-1:<AWS_ACCOUNT_ID>:identity/*"
            ]
        }
    ]
}
          Replace <AWS_ACCOUNT_ID> with your AWS account ID.
    • Click Save.
    • Troubleshooting:
      • Role not listed: Check DynamoDBBackupRole (section 6.5) and iam:PassRole permission.
      • Permission error: Ensure the ARNs for studentData, student-backup-20250706, and SES identity are correct.

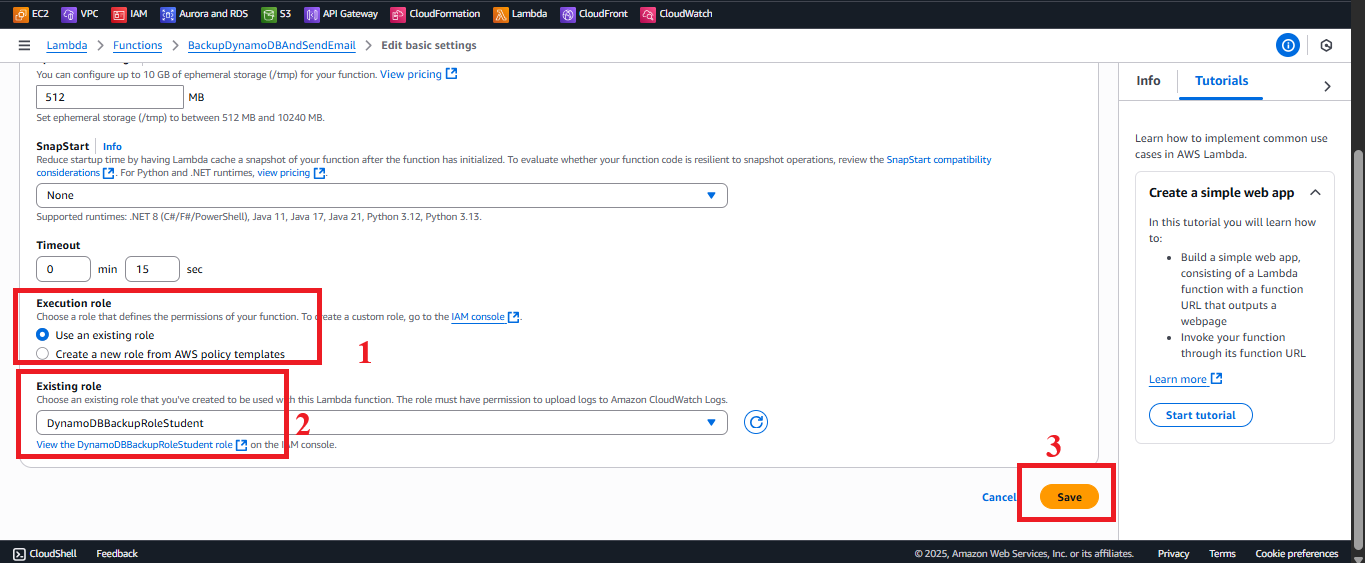

        Update General configuration. Figure 4: Update General configuration.

  6. Save Configuration

    • Click Save.
    • Result: Notification “Successfully updated function configuration”. Memory (128 MB), Ephemeral Storage (512 MB), and Execution Role (DynamoDBBackupRole) are updated.
    • Troubleshooting:
      • AccessDenied: Check lambda:UpdateFunctionConfiguration permission:
        {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "lambda:UpdateFunctionConfiguration",
            "Resource": "arn:aws:lambda:us-east-1:<AWS_ACCOUNT_ID>:function:BackupDynamoDBAndSendEmail"
        }
    ]
}
      • Configuration not saved: Check input values and DynamoDBBackupRole.
        Save configuration success notification. Figure 5: Save configuration success notification.

  7. Create Environment Variables

    • In Configuration > Environment variables, click Edit.
    • Add variables:
      • Key: S3_BUCKET_NAME, Value: student-backup-20250706 (target bucket for backup JSON).
      • Key: SENDER_EMAIL, Value: no-reply@studentapp.com (SES verified email).
      • Key: RECIPIENT_EMAIL, Value: admin@studentapp.com (SES verified email).
    • Click Save.
    • Reason: Environment variables allow the Lambda code to reference bucket and email dynamically, avoiding hardcoding.
    • Troubleshooting:
      • Save error: Check lambda:UpdateFunctionConfiguration permission.
      • Bucket does not exist: Verify student-backup-20250706 (section 2.4).
      • Invalid email: Verify no-reply@studentapp.com and admin@studentapp.com in SES (section 3).

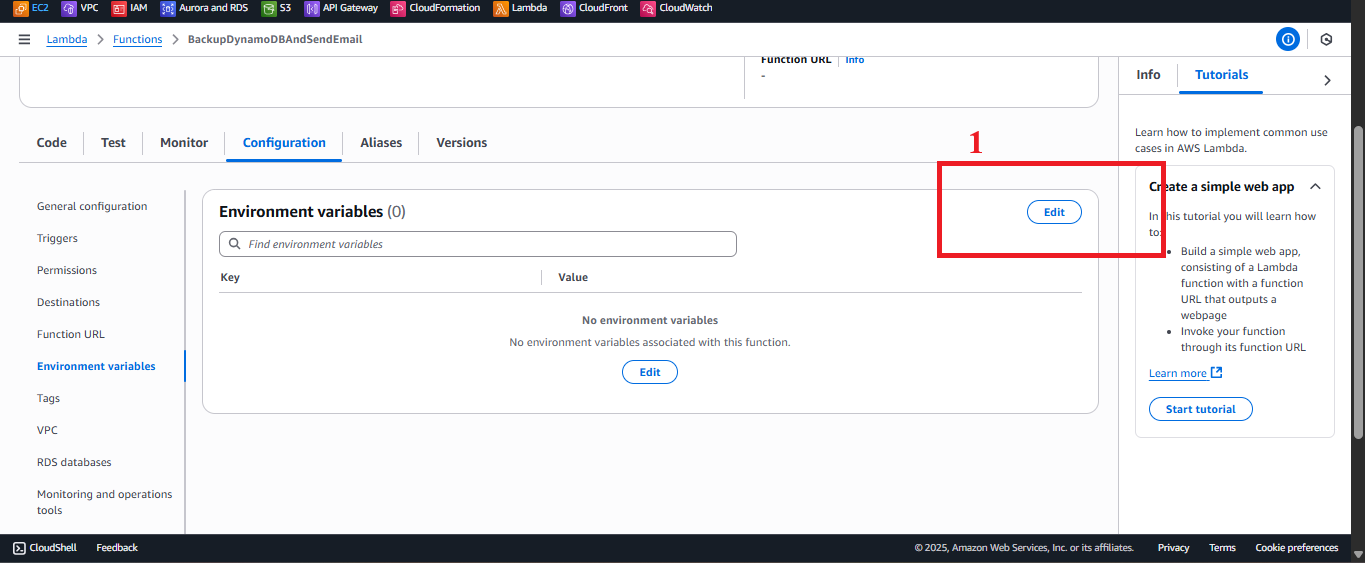

        Add Environment variables. Figure 6: Add Environment variables.

  8. Test Lambda Configuration

    • In Test, create a test event with content {} (simulate EventBridge).
    • Click Test.
    • Expected results:
      • JSON file (e.g., students-backup-20250708T1236.json) appears in S3 student-backup-20250706.
      • Email sent to admin@studentapp.com with subject Backup Completed: students-backup-20250708T1236.json and body Backup saved to s3://student-backup-20250706/students-backup-20250708T1236.json.
    • Troubleshooting:
      • AccessDenied: Check s3:PutObject, dynamodb:Scan, ses:SendEmail permissions in DynamoDBBackupRole.
      • No items in DynamoDB: Call POST /students (section 4.5) to add data to studentData.
      • SES error: Verify no-reply@studentapp.com, admin@studentapp.com in SES (section 3).
      • Environment variable not found: Check S3_BUCKET_NAME, SENDER_EMAIL, RECIPIENT_EMAIL in Environment variables.
        Lambda test result. Figure 7: Lambda test result.

Important Notes

Factor Details
Security - Avoid embedding StudentApiKey in scripts.js. Use CloudFront Functions to add the x-api-key header: javascript <br> function handler(event) { <br> var request = event.request; <br> request.headers['x-api-key'] = { value: 'xxxxxxxxxxxxxxxxxxxx' }; <br> return request; <br> } <br> - Verify SES emails (no-reply@studentapp.com, admin@studentapp.com) before sending.
Optimization - Enable CloudWatch Logs for Lambda: In Configuration > Monitoring and operations tools, select Enable CloudWatch Logs. - Use AWS CLI to check configuration: bash <br> aws lambda get-function-configuration --function-name BackupDynamoDBAndSendEmail <br>
Integration - CORS: Ensure Access-Control-Allow-Origin: https://d12345678.cloudfront.net in API Gateway (section 4.7). - Verify POST /students, GET /students, POST /backup endpoints work with StudentApiKey.
Integration Testing - Access CloudFront URL (https://d12345678.cloudfront.net) and check: - POST /students: Save record, send SES email. - GET /students: Display table. - POST /backup: Create file in student-backup-20250706, send email. - Use Developer Tools > Network to inspect API requests.
Error Handling - AccessDenied: Check permissions in DynamoDBBackupRole and bucket policy of student-backup-20250706. - SES error: Verify SES emails. - No data: Add data to studentData via POST /students. - Environment variable error: Check environment variables in Configuration.

Best practice tip: Test Lambda after each update using the {} event. Check CloudWatch Logs for debugging. Prepare for section 8.2 by ensuring the function works correctly with the POST /backup endpoint.

Conclusion

The Lambda function BackupDynamoDBAndSendEmail has been configured with Memory (128 MB), Ephemeral Storage (512 MB), role DynamoDBBackupRole, and environment variables (S3_BUCKET_NAME, SENDER_EMAIL, RECIPIENT_EMAIL). The function is ready to back up data from DynamoDB studentData to S3 student-backup-20250706 and send emails via SES, integrated with the student API and web interface.

Next step: Proceed to Create EventBridge Rule for Automated Backup to enable scheduled backups!
