Create POST Method to Store Data

Objective: Create a POST method on the /students resource in the student API (created in section 4.1) to integrate with the insertStudentData Lambda function (created in section 3.2), allowing student information to be stored in the studentData DynamoDB table and a confirmation email to be sent via SES. The method will require an API Key (StudentApiKey, created in section 4.2) in the x-api-key header for security and prepare for enabling CORS (section 4.7) so the web interface (running on CloudFront) can make requests.

Overview of the POST Method

  • The POST /students method will call the insertStudentData Lambda function to store a student record (fields: studentid, name, class, birthdate, email) into the studentData DynamoDB table and send a confirmation email via SES.
  • The insertStudentData function will return a JSON response with the header Access-Control-Allow-Origin: '*' to support CORS, suitable for the web interface.
  • API Key Required ensures that only requests with a valid StudentApiKey will be processed.
  • After creation, the API needs to be deployed (section 4.8) for the POST method to take effect.

Prerequisites

You need to complete section 4.1 (create the student API), section 4.2 (create the StudentApiKey API Key), section 4.3 (create the StudentUsagePlan Usage Plan), section 4.4 (create the GET /students method), and section 3 (create the Lambda functions getStudentData, insertStudentData, BackupDynamoDBAndSendEmail, the studentData DynamoDB table, the student-backup-20250706 S3 bucket, SES email verification). Ensure your AWS account is set up and the AWS region is us-east-1.

Detailed Steps

  1. Access AWS Management Console

    • Open your browser and log in to AWS Management Console with your AWS account.

    • In the search bar at the top, type API Gateway and select the Amazon API Gateway service to access the management interface.

    • Check the AWS region: Ensure you’re working in the primary AWS region (assumed to be us-east-1 for synchronization with previous sections), and check the region at the top right corner of the AWS Console. This region must match the student API, the insertStudentData Lambda function, the studentData DynamoDB table, the student-backup-20250706 S3 bucket, and SES.

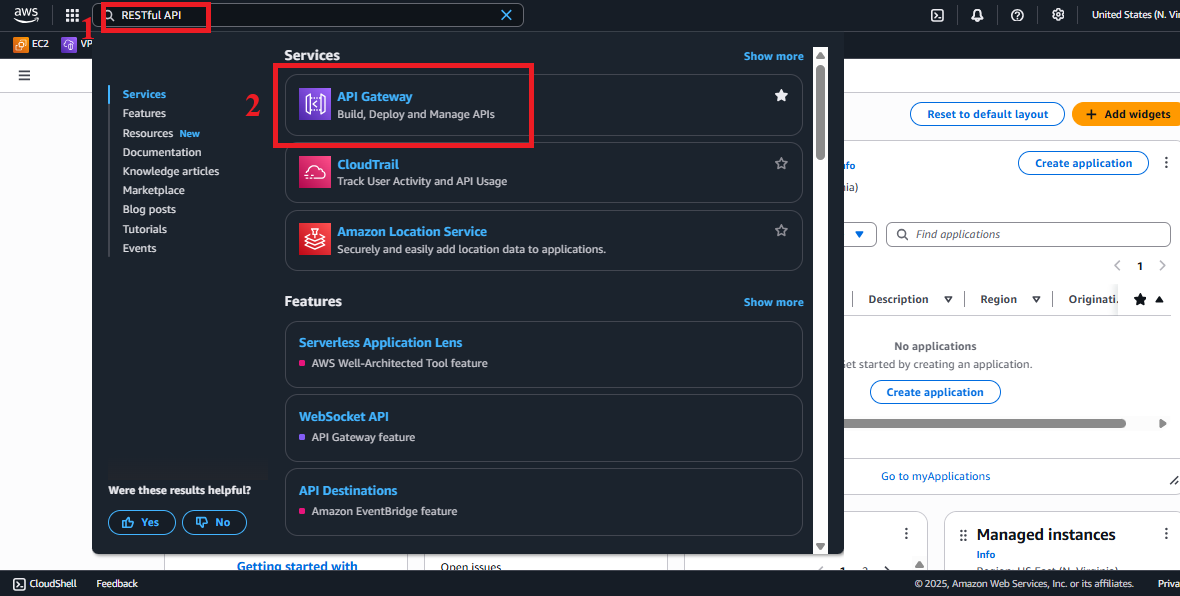

      AWS Console Interface with API Gateway Search Bar Figure 1: AWS Console Interface with API Gateway Search Bar.

  2. Navigate to the APIs Section

    • In the main Amazon API Gateway interface, look at the left navigation menu.

    • Select APIs to view the list of existing APIs.

    • The list will show the student API (created in section 4.1). If not visible, check the AWS region again or refresh the page.

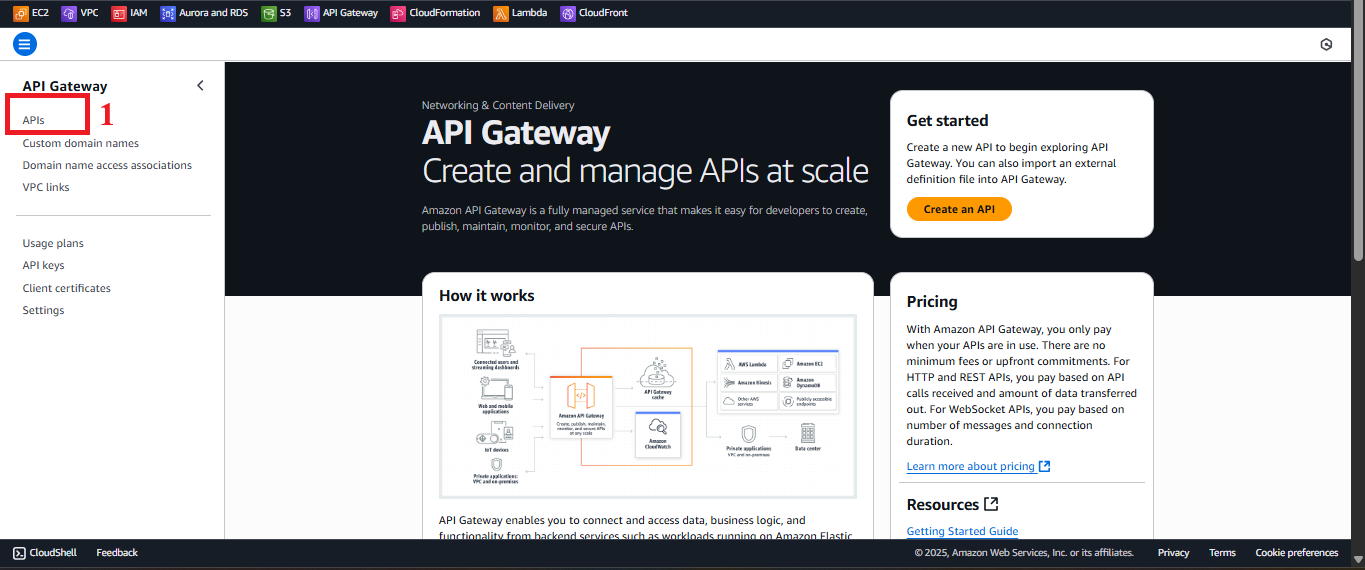

      Navigation Menu with APIs Option Figure 2: Navigation Menu with APIs Option.

  3. Select the student API

    • In the APIs list, find and select the student API.

    • You’ll be taken to the student API management page, displaying options like Resources, Stages, API Keys, etc.

    • Select Resources from the left menu to continue configuring the resource and method.

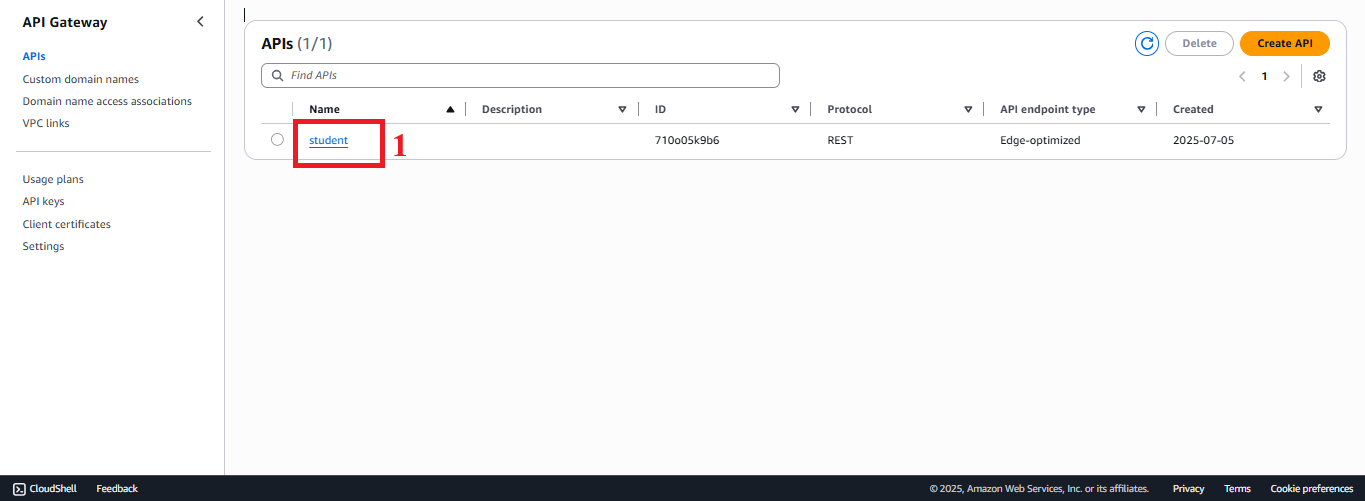

      API Management Page for student with Resources Option Figure 3: API Management Page for student with Resources Option.

  4. Use the /students Resource

    • In the Resources interface, you will see the root / and the /students resource (created in section 4.4 for the GET method).

    • If the /students resource doesn’t exist:

      • Click Actions > Create Resource.
      • Configure the resource:
        • Resource Name: Enter students.
        • Resource Path: Enter /students (or leave the default, which will automatically be /students).
        • Enable API Gateway CORS: Select to prepare for enabling CORS (section 4.7).
      • Click Create Resource to create it.

    • Select the /students resource in the resource tree to create the POST method.

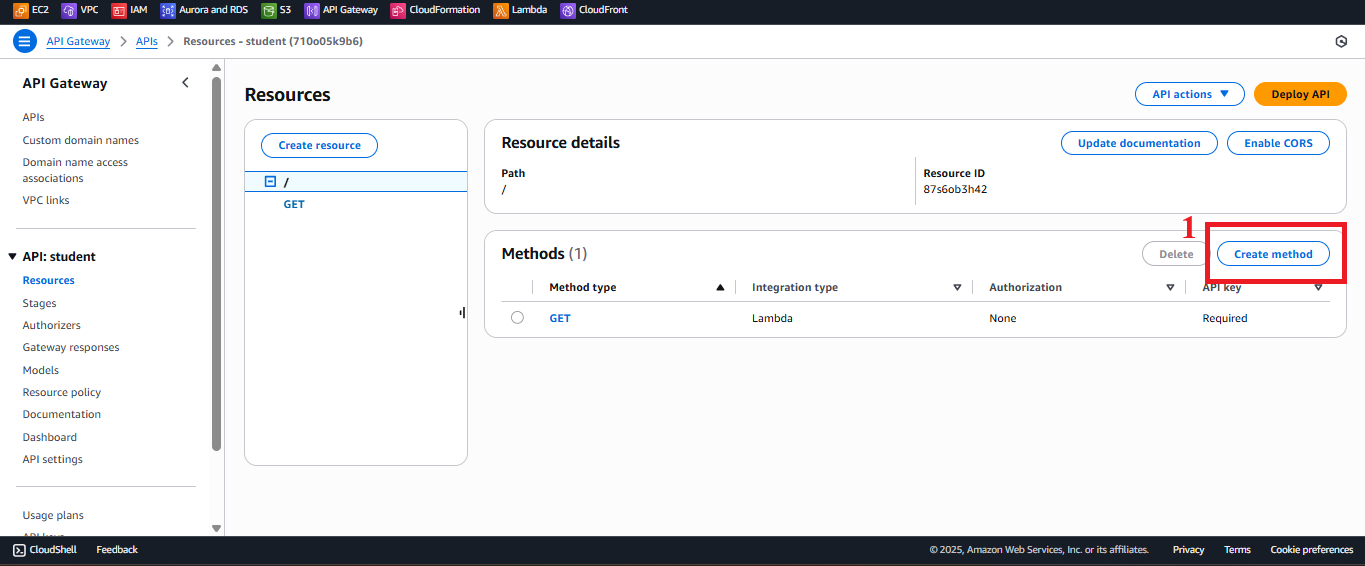

      Use /students Resource Interface Figure 4: Use /students Resource Interface.

  5. Create the POST Method

    • In the resource tree, select the /students resource.

    • Click Actions > Create Method.

    • From the dropdown under /students, select POST and click the checkmark (✔) to confirm.

    • Note: If the dropdown doesn’t show POST, ensure you’ve selected the correct /students resource.

    • In the POST method configuration interface:

      • Integration Type: Select Lambda Function to integrate with the Lambda function.
      • Use Lambda Proxy integration: Select (to send the entire HTTP request, including headers and body, to the Lambda function and receive a JSON response with headers).
      • Lambda Region: Select us-east-1 (or your AWS region, which must match the region of the insertStudentData function).
      • Lambda Function: Enter insertStudentData.
        • Note: If the insertStudentData function doesn’t appear in the suggestion list, enter it manually and ensure the function exists in Lambda (section 3.2).
      • Click Save to save the configuration.

    • If AWS prompts for permissions, click OK to allow API Gateway to invoke the insertStudentData Lambda function. AWS will automatically add the IAM policy to the Lambda function’s role (usually LambdaInsertStudentRole from section 3.2) with the lambda:InvokeFunction permission.

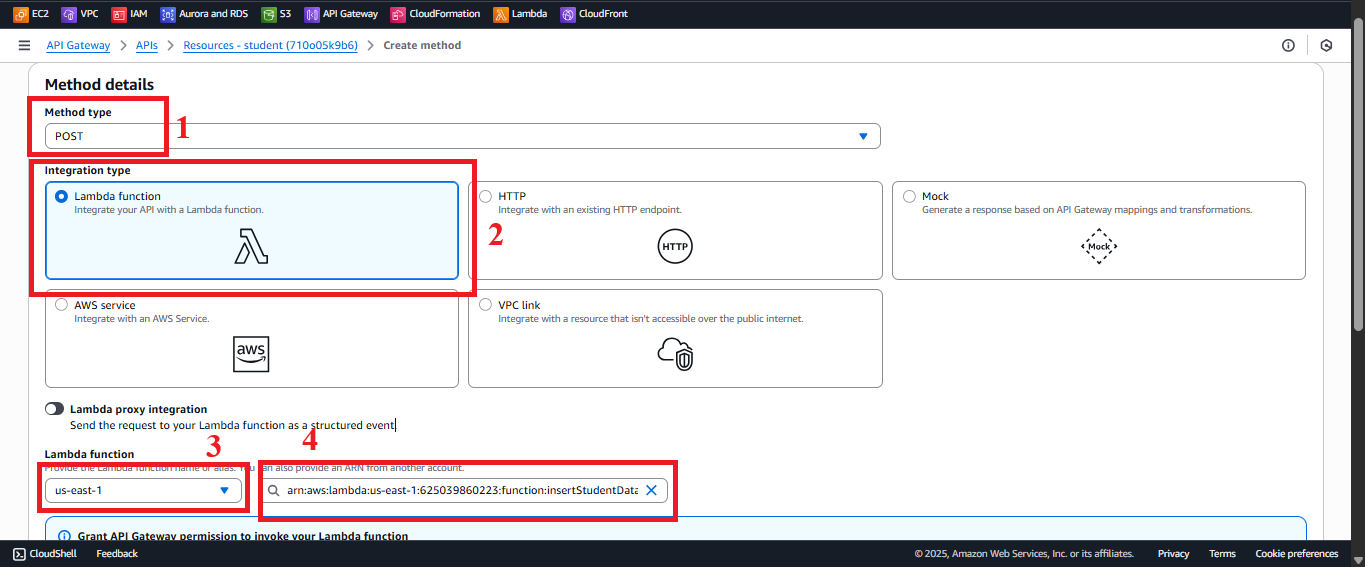

      Create POST Method Interface Figure 5: Create POST Method Interface.

  6. Enable API Key Required

    • In the Method Request interface for POST /students:

      • Click Edit next to Authorization.
      • Select NONE (API Key will handle authentication, no need for Cognito or IAM Authorizer).
      • In API Key Required, select true to require the API Key in the x-api-key header.
        • Explanation: This ensures that any request sent to POST /students must include the StudentApiKey (created in section 4.2) in the x-api-key header.
      • Click Save or the checkmark (✔) to save the configuration.

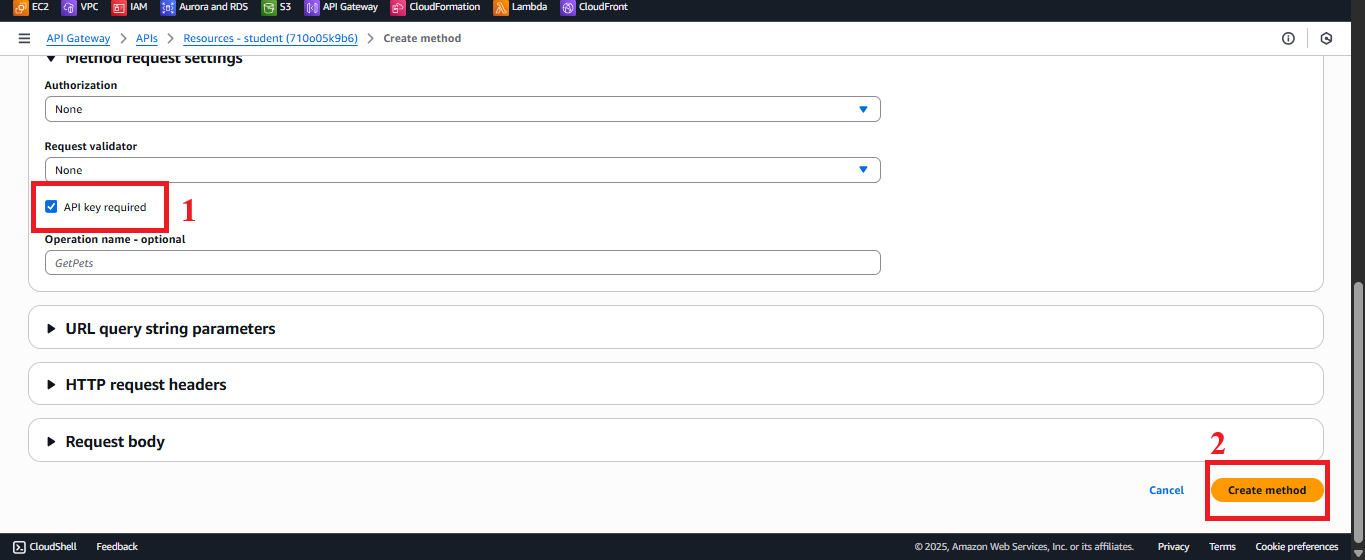

      Enable API Key Required Interface Figure 6: Enable API Key Required Interface.

  7. Check the Status of Method Creation

    • After configuring and clicking Save, you’ll see the message: “Successfully created method ‘POST’. Redeploy your API for the update to take effect.”

    • Important Note: The POST method will not work until you deploy the API to a stage (section 4.8).

    • To check the configuration:

      • In Resources, select POST under /students.
      • Verify:
        • Integration Request: Displays Lambda Function: insertStudentData.
        • Method Request: API Key Required: true.
      • If errors occur:
        • “Lambda function not found”: Check that the insertStudentData function exists in Lambda > Functions and the AWS region matches (us-east-1).
        • “AccessDenied”: Check if your AWS IAM role has the apigateway:PUT permission to create methods.
        • “Permission denied”: Ensure API Gateway has permission to invoke insertStudentData (AWS automatically adds permission when you click OK).

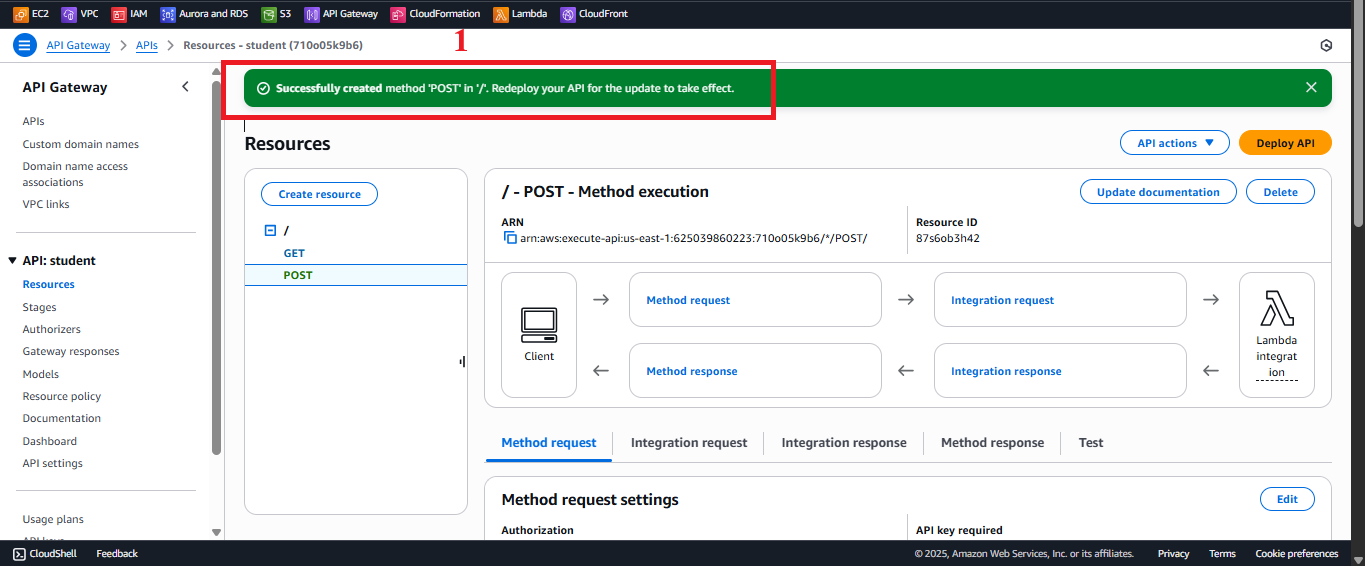

      Success Message After Creating POST Method

      • Figure 7: Success Message After Creating POST Method.

Important Notes

Element Details
Lambda Proxy Integration Lambda Proxy integration allows sending the entire HTTP request (headers, body) to the insertStudentData function and receiving a JSON response with headers (like Access-Control-Allow-Origin: '*'). Ensure the insertStudentData function (section 3.2) correctly handles the input JSON format and returns a valid response.
API Key Security With API Key Required: true, requests to POST /students must include the header x-api-key: <StudentApiKey>. For enhanced security, store the API Key in AWS Secrets Manager (see section 4.2).
CORS The POST method must support CORS for the web interface to make cross-origin requests. This will be configured in detail in section 4.7 (enabling CORS with the OPTIONS method). Ensure the insertStudentData function returns the Access-Control-Allow-Origin: '*' header (or a specific CloudFront domain, e.g., https://d12345678.cloudfront.net).
AWS Region Ensure the us-east-1 region matches the insertStudentData function, the studentData table, SES, and the student API. If using a different region (e.g., us-west-2), select the correct region in the Lambda Region.
Error Handling - If you encounter the error “Lambda function not found”: - Check that the insertStudentData function exists in Lambda > Functions. - Ensure the AWS region matches (us-east-1). - If you encounter a 403 "Forbidden" error when calling the API (after deployment): - Check API Key Required: true and ensure the StudentApiKey is valid. - Ensure the API Key is linked to the Usage Plan (sections 4.3, 4.9). - If you encounter 400, 409, or 500 errors from Lambda, check the logs in CloudWatch (log group /aws/lambda/insertStudentData) for debugging: - 400: Invalid JSON body (missing studentid, name, etc.). - 409: studentid already exists (due to ConditionExpression). - 500: DynamoDB or SES error (e.g., email not verified in SES).
Optimization - Add the Access-Control-Allow-Origin header in Method Response to ensure CORS works correctly: - In Method Response for POST /students, add Status Code 200, 400, 409, 500 with the header Access-Control-Allow-Origin: '*'. - In Integration Response, map the response from Lambda to handle status codes. - Consider using AWS WAF with API Gateway to protect against DDoS attacks or API Key abuse. - If input validation is needed, add a Request Validator in Method Request to check the JSON body for required fields (studentid, name, class, birthdate, email).
Early Testing - After creating the POST method, verify the configuration in Resources > POST /students (Integration Request, Method Request). - After deploying the API (section 4.8), test the POST method using Postman or curl. - Check the studentData DynamoDB table (go to DynamoDB > Tables > studentData > Explore items) to verify the new record. - Check the recipient’s mailbox (including Spam/Junk) for the confirmation email from SES (e.g., student4@example.com). - If you encounter a 403 "Forbidden" error, check the API Key and API Key Required configuration. - If you encounter 400, 409, or 500 errors, check the CloudWatch logs for the insertStudentData function.
Web Interface Integration Testing After deploying the API (section 4.8) and linking the Usage Plan (section 4.9), use the API Key in the web interface (using Tailwind CSS, running on CloudFront) to call the POST /students endpoint.

Practical Tip: Verify the Integration Request and API Key Required configurations before deploying the API. Test the data in the studentData table and the confirmation email from SES using Postman to ensure the insertStudentData function works correctly.

Conclusion

The POST /students method has been successfully created in the student API, integrated with the insertStudentData Lambda function and requiring the StudentApiKey API Key, ready for deployment and use in the web interface.

Next step: Go to Create Resource & Method for Backup Feature to continue!
